Gpib Maximum Cable Length

Additional information gpib supports up to a maximum total cable length of 20 m or 2 m times the number of devices whichever is less. Up to fifteen instruments may be connected together with a maximum bus length not exceeding 20 m. 783368 01 is 2 meters long.

good sense tall kitchen bags gold bay window curtain pole gotoh locking tuners glass door pivot hinges rockler futaba glass door schneider gothic black and red wedding rings glass door for beauty parlour gift ideas for nirvana fans

Installing Gpib Enet 100 Controllers National Instruments

Installing Gpib Usb Controllers National Instruments

Basic Knowledge And Glossary For Gpib Communication Contec

Gpib Ieee488 Bus Description Hpib Electrical Interface And Ieee 488 Pinout Gpib Information

Installing Ni Pcmcia Gpib Controllers National Instruments

L Com Ieee 384 Gpib Tips Itm Components

Maximum cable length of 20 m maximum of 15 loads devices per bus e g one board and up to 14 instruments with at least two thirds of the devices powered on note.

Gpib maximum cable length.

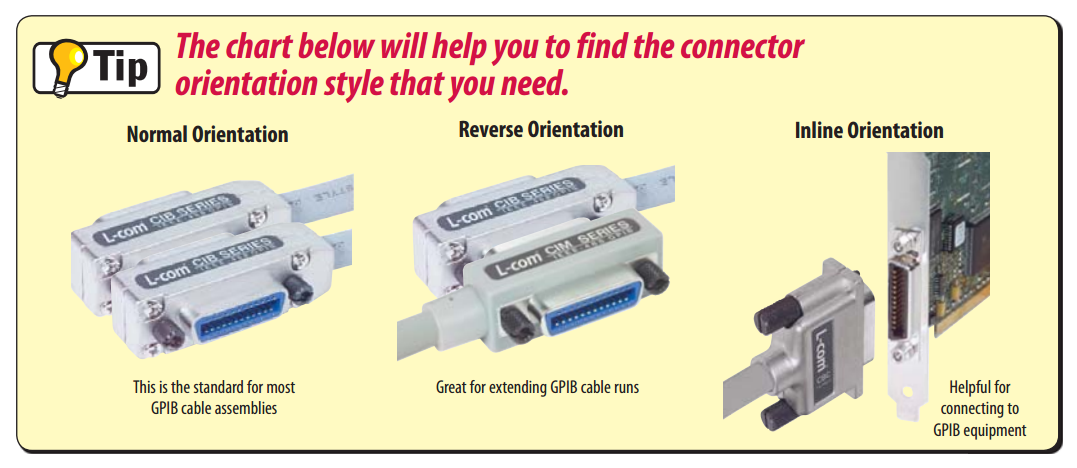

The gpib cable features 24 pin ieee 488 standard connectors designed to match the iee 488 specifications for digital communications. We offer one of the widest selections of gpib cable assemblies available anywhere. Additionally the gpib cable can be daisy chained to another compatible gpib cable. Ieee488 devices may be connected in either a star or linear fashion device to device.

Even though the maximum cable length between gpib devices is 4m you can still use an 8 meter cable to communicate with your devices. The gpib or ieee 488 bus is a very flexible system allowing data to flow between any of the instruments on the bus at a speed suitable for the slowest active instrument. You can connect this cable to gpib compatible hardware such as controllers and test equipment. Ieee 488 gpib cable assemblies from l com include molded shielded inline reverse entry lszh and more.

The gpib usb hs cable pn. Gpib cable manufacturers belden keithley single double shielded gpib cables ieee 488 to centronics cable adapter ines test and measurement normal cable lengths. Although the bus was created in the late 1960s to connect together automated test equipment it. Of devices or 20 m whichever is shorter.

When you buy the gpib cable you can be sure of an automatic seamless compatibility between computers and the instruments throughout your system. The maximum cable length that can be used to connect devices to each other in a single system is 2 m x no. Keysight also offers a variety of gpib cables that provide easy and reliable connections. Ieee488 has a maximum cable length of 20 meters or 2 meters per device which ever is less.

Ieee 488 is a short range digital communications 8 bit parallel multi master interface bus specification developed by hewlett packard as hp ib hewlett packard interface bus it subsequently became the subject of several standards and is generically known as gpib general purpose interface bus. System with a total of 2 devices 1 controller 1 gpib communication device 2 m x 2 devices 20 m so the maximum cable length of the whole system is 4 m. Keysight gpib cables are engineered for high reliability and durability even under harsh conditions.
